2012 GT3 RSR specfications
Concept
single-seated GT race vehicle.
in accordance with the current A.C.O. LMGT2 Regulations and the FIA Article
257 (Technical Regulations for Series Grand Touring Cars).
basis: Porsche 911 GT3 RS (997; street legal version), homologated from January
2010 onwards.
including A/C system- including
heated windshield - including Bosch memory kit - including thermostat needed
for long-distance kit- plus four required transportation hooks ($657.80)-
plus sales tax (if applicable)
Optional equipment
Lighting Package (required extra feature): US $5,600
Required to run in ALMS events; consists of:
Xenon main headlights
Additional headlight
Start number lighting
Cockpit lighting
Bosch Memory Darab License (optional): US $5,100.
Engine
Naturally aspirated engine with
intake above rear side panel.
Water-cooled flat six-cylinder boxer engine with four-valve cylinder.
Capacity:
3,996 cc (stroke 80.4 mm, bore 102.7 mm diameter)
Max. power: 339 kW (460 hp) with restrictors 2 x 28.9 mm (subject to BoP)
Required fuel: 98 octane RON, unleaded
Dry-sump lubrication
Sequential multi-point
fuel injection
Returnless fuel system

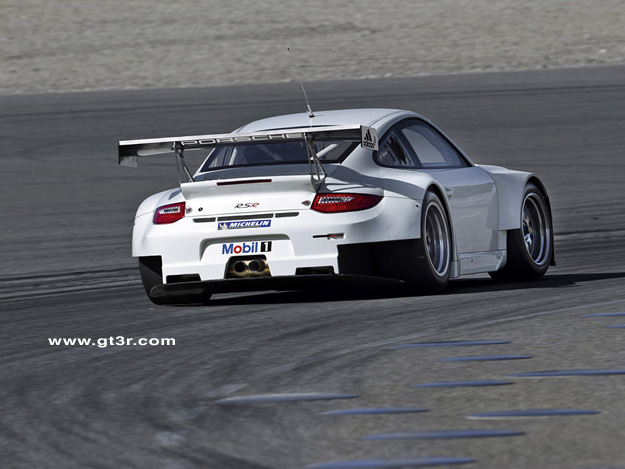

Lightweight modular race exhaust system

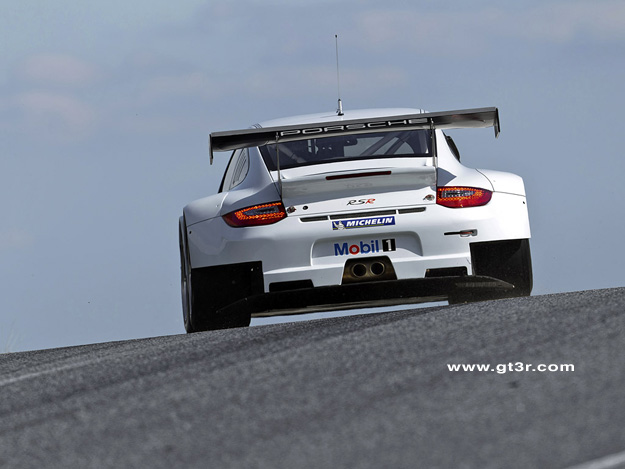

Rear muffler with twin-branch, centrally aligned tailpipe
Thermostat
Power Train
Porsche six-speed sequential dog gearbox with pneumatically
activated shift mechanism, active oil cooling and internal pressurized oil
lubrication system.
Gear ratios:
Drop gear 25/32 I = 1.280
Bevel crown wheel 09/26 i = 2.889
1st gear 13/41 i = 3.154
2nd gear 17/39 i = 2.294
3rd gear 19/36 i = 1.895
4th gear 22/35 i = 1.591
5th gear 23/31 i = 1.348
6th gear 25/29 i = 1.160
Limited slip differential 45/65 %
Single-mass flywheel
Race clutch (5.5" triple-disc carbon clutch)
Hydraulically operated release bearing
Oil-water heat exchanger
Rear-wheel drive
Combined gear box,air-conditioning compressor frame
Bodywork
Lightweight, widened chassis using
add-on carbon/kevlar parts.
Welded-in roll cage
Carbon fiber/kevlar parts:- Bumper panels with front spoiler- Air intake and
exit ducts for center and side coolers- Front lid with louvers for ventilation
outlet middle cooling- Fenders and inner wheel arch liners- Widened side skirts-
Doors with window frame and plastic mirrors- Rear wheel arch extensions with
side intake air duct- Rear inner wheel arch liners- Rear cover with adjustable
rear wing- Rear panels with wheel arch ventilation
Closed underbody with rear diffuser
Removable rear windscreen
Pedal box
Air-jack system with safety pressure valve
Racing seat (driver side only) with fire retardant upholstery
Six-point seat belt optimized for use with HANS system
Removable steering wheel (with quick-decoupler)
Electric fire extinguishing system
90-liter fuel tank (FT-3 safety cell).
Colors
Water-based paint
Exterior: Carrara white B9A
Interior: White filler coat, no clear-coat finish
Vehicle Weight
approx. 1220 kg (ACO spec)
Suspension
Front axle:
Height-adjustable McPherson strut-type axle with adjustable spring mount and
damper setting.
SACHS gas pressure shock absorbers (through rod).
Double coil springs (main spring and helper spring).
Adjustable spring platform.
Camber adjustment on lower wishbone.
Adjustable bilateral blade-type anti-roll bar with adapted stiffness.
Reinforced front axle cross rail.
Rear axle track rod adjustable in length.
Power steering with electro-hydraulic pressure feed.
Forged supporting mounts
Rear axle:
Height-adjustable multilink rear suspension with solidly mounted subframe
and adjustable spring mount and damper setting
SACHS gas pressure shock absorbers (through rod)
Double coil springs (main spring and helper spring)
Adjustable spring platform
Forged, two-piece lower control arms with camber adjustment
Reinforced, continuously variable rear axle track rodo Adjustable bilateral
blade-type anti-roll bar with adapted stiffness
Rims/Tires
Front axle: Three-piece BBS light aluminum rims 12J x 18; 9 mm offset with
center lock wheel nuts (due to 50 mm width increase of front andrear track)
Michelin rain tires 30/68-18
Rear axle: Three-piece BBS light aluminum rims 13J x 18; 12.5 mm offset withcenter
lock wheel nuts
Michelin rain tires 31/71-18
Brake System
Brake system with adjustable bias
bar and two master cylinders
Front axle:
Single-piece, fixed
aluminum six-piston caliper. Steel brake rotors, 380 mm diameter
Race brake pads
Rear axle:
Single-piece, fixed aluminum four-piston caliper. Steel brake rotors, 355
mm diameter
Race brake pads
Electrics
MoTec display with integrated data recording
Motec PDM - programmable multifunctional on-board electronics control box
Motec SLM - multifunctional display with integrated shift-point control
Bosch MS 4.0 engine control unit

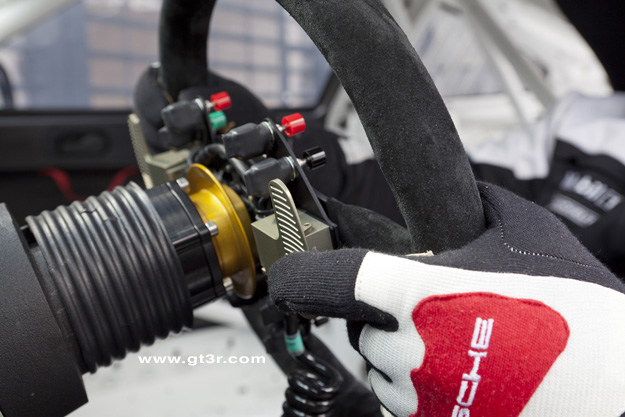

Megaline paddle shift (paddles integrated into steering wheel)
Electrically adjustable mirrors with memory function
Bosch Memory Windarab data recording (without license) External LCD oil-level
sensor
Heated windshield
Battery: 12 Volt, 80 Ah
140 Ah alternator
LED rear lights
Rain light integrated into rear cover
Light-weight wiring loom (prepared for ACO data logging).
Air-Conditioning System
A/C pipes including quick-release
couplings
Compressor in gearbox area
Condenser in front bodywork
Carbon-fiber kevlar cockpit bulkhead panel
Temperature sensor.
Background
The new Porsche 911 GT3 RSR is ready to race. The top model of Porsche Motorsport's
customer racing vehicles will head into the 2012 season with extensive modifications.

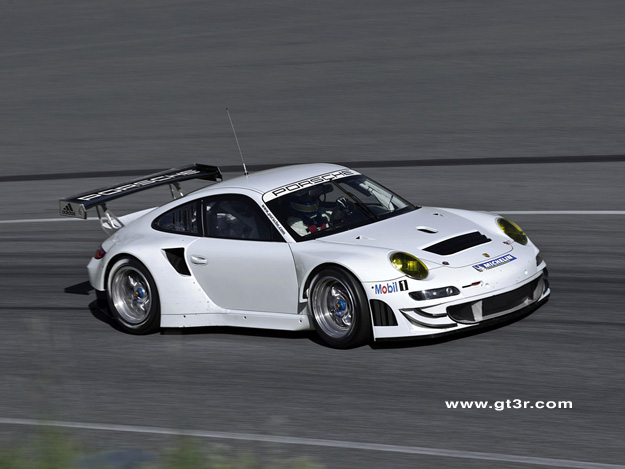

Particularly striking at first glance are the changes to the body: the width
of the new GT3 RSR has grown by 48 millimetres. Built to conform to the A.C.O.
"LM" GTE regulations, the 911 represents the crowning pinnacle of
a range of successful customer sport race cars that are based on the 997 type
911 GT3 RS street sports car.
Powering the new 911 GT3 RSR is a particularly efficient six-cylinder boxer
engine with a four-litre capacity. With a mandatory air-restrictor, it generates
460 hp (338 kW) and drives the 310 millimetre wide rear wheels. The diameter
of the front wheels has increased by 30 mm to now measure 680 millimetres.
The Porsche sequential six-speed gearbox is operated via paddle shifts on
the steering wheel.

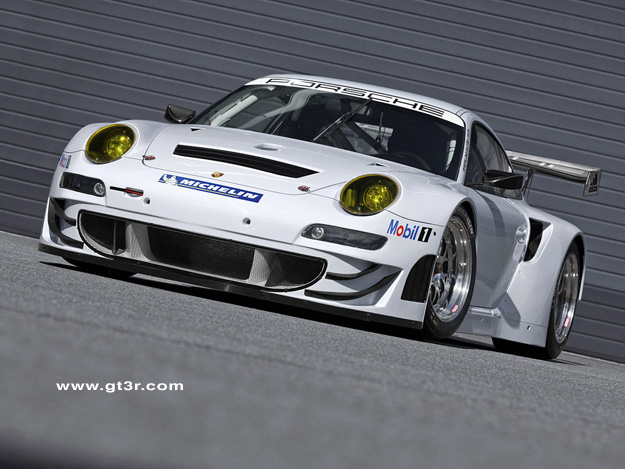

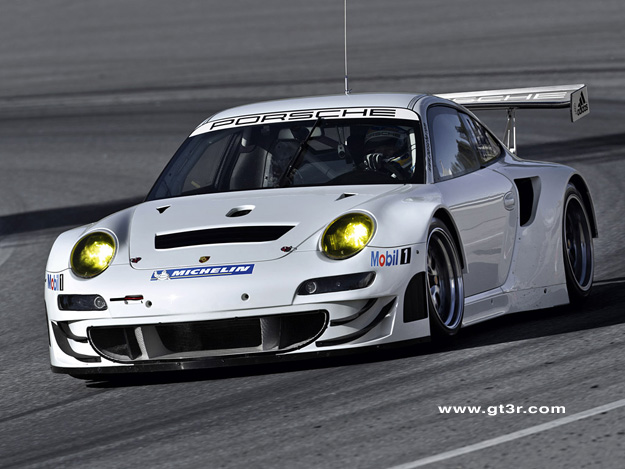

The nose and rear panels are adapted to the flared front and rear wheel arches,
as are the door sill and the wheel arch coverings. The aerodynamic concept
is complemented by a new ducting of the intake air. Openings in the rear side
sections, as known from the turbo variants of the Porsche 911, replace the
air scoop on the engine hood, which is very similar to the 911 GT2 RS street
sports car.
The new 911 GT3 RSR can be raced at the Le Mans 24 Hours, the FIA World Endurance
Championship, the Le Mans Series, the American Le Mans Series as well as the
International GT Open and in other series and races.
The new Porsche 911 GT3 RSR will be delivered to customer squads around the
world from January 2012. The selling price is 498,000 Euro plus value added
tax of the respective countries.
First public debut

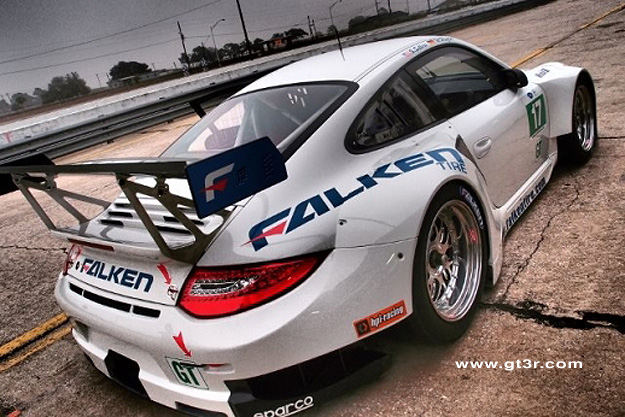

2012 Porsche 911 GT3 RSR Debuts at Sebring Test with Four Race Cars
Flying Lizard Motorsports, Paul Miller Racing, and Team Falken Tire First in the World to show new car to the public
Sebring, Fla. – February 9 -- The new Porsche 911 GT3 RSR race cars, still in plain white livery as they arrived from the factory in the last week or two, made their world debut as three U.S. customer teams gave them their first race track test preparing for next month's 60th Anniversary Mobil 1Twelve Hours of Sebring Fueled by Fresh from Florida.
The top-of-the-line model of Porsche
Motorsport's customer racing vehicles will head into the 2012 season with
extensive modifications. Particularly striking at first glance are the changes
to the body: the width of the new GT3 RSR has grown by 48 millimeters. Built
to conform to the A.C.O. "LM" GTE regulations, the 911 represents
the crowning pinnacle of a range of successful customer sport race cars that
are based on the 911 GT3 RS (type 997) street sports car.
Continuing to powering the new 911 GT3 RSR is a particularly efficient six-cylinder
boxer engine with a four-liter capacity. With a mandatory air-restrictor,
it generates 460 hp (338 kW) and drives the 310 millimeter-wide rear wheels.
The diameter of the front wheels has increased by 30 mm to now measure 680
millimeters. The Porsche sequential six-speed gearbox is operated via paddle
shifts on the steering wheel.
The nose and rear panels are adapted to the flared front and rear wheel arches, as are the door sill and the wheel arch coverings. The aerodynamic concept is complemented by a new ducting of the intake air. Openings in the rear side sections, as known from the turbo variants of the Porsche 911, replace the air scoop on the engine hood, which is very similar to the 911 GT2 RS street sports car.
The four new 911 GT3 RSRs will be
competing in the American Le Mans Series. The car can also compete at the
Le Mans 24 Hours, the FIA World Endurance Championship, and the Le Mans Series,
as well as the International GT Open and in other series and races.
"Our customer teams can expect a technically mature, high performance
race car with which they will be highly competitive at international long
distance races," assures Hartmut Kristen, Head of Porsche Motorsport.
"Our test program on various international race tracks is currently running
at full speed. We are very pleased with the car's performance and drivability."
Notable Victories
