2000 GT3 R specfications

Porsche 911 GT3 R
2000 Vehicle Description (according to 2000 ACO Le Mans Regulations)


six cylinder boxer engine
3600 cc 76.4 mm. stroke, 100mm bore
maximum torque 380 Nm @ 7000 rpm
power 300 KW (410 HP) @ 8200 rpm with 43.1 mm restrictor
maximum rpm 8500
water cooled with oil heat exchanger
dry-sump lubrication
intake system with six throttle valves
Bosch MS 3.1 fuel injection with detonation control
exhaust manifold open, without catalytic converter
108 RON octane leaded fuel

Power Train

six speed manual transmission type G96/61 with oil cooler cable controlled gear shift mechanism
rear wheel drive
single mass flywheel with racing clutch
limited slip differential -- 40/65%
gear ratios (as delivered)
ring and pinion 7/35


revised 996 chassis with front and rear composite fender flares
composite front nose, front fenders, front and rear hood, doors, rear tail and rear lid
aerodynamically optimized front nose and rear tail
welded-in safety roll cage
racing bucket seat (driver only)
six-point seat belt/harness
MOMO steering wheel
fire extinguisher
100 liter FT 3 safety fuel cell
air jacks
plastic door, side and rear windows


electrically actuated power steering
McPherson front suspension with ball joints
multilink rear axle with ball joints
coil spring with adjustable ride height and rate
Bilstein adjustable shock absorbers
wheels three piece BBS
front - 10" X 18"
rear - 11" X 18"
Pirelli rain tires
front 265/645 X 18
rear 295/680 X 18
center lock hubs/wheels
front roll bar adjustable in five positions
rear roll bar adjustable in three positions
drive shafts with CV joints

Brake System

twin pedal system with two master cylinders and balance bar
internally vented brake discs
front - 380mm diameter
rear - 355 mm diameter
no ABS


Bosch MS 3.1 engine management
Stack display with integrated data recording (data recording device: optional)
lap trigger over Stack display
12V 50 Ah battery
alternator 110 amp

Vehicle weight

Approximately 1,100 kg (2442 lb.) per Le Mans Regulations


December through March 2000

Color Exterior and interior

Biarritz white Z2
Guards red G1
Black A1
Speed yellow X4

Optional equip.

All data as of August 1999. All data subject to change without notice. All previously published technical data and prices no longer valid. Vehicles cannot be registered for public road use.

Production Figure - 66 cars

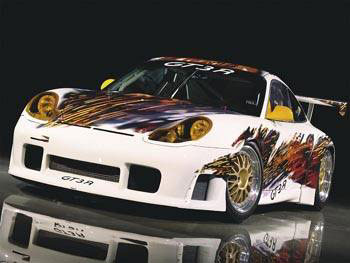

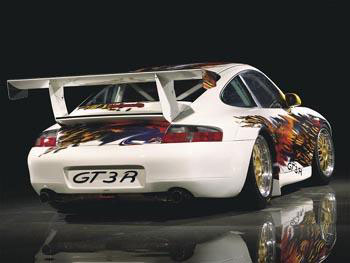

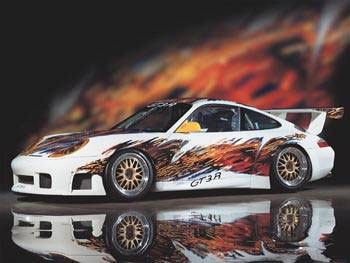

2000 press photos

the factory official photos for the 2000 production run.

(this car was seen with Alex Job Racing at Daytona in 2000 testing in this paint scheme)

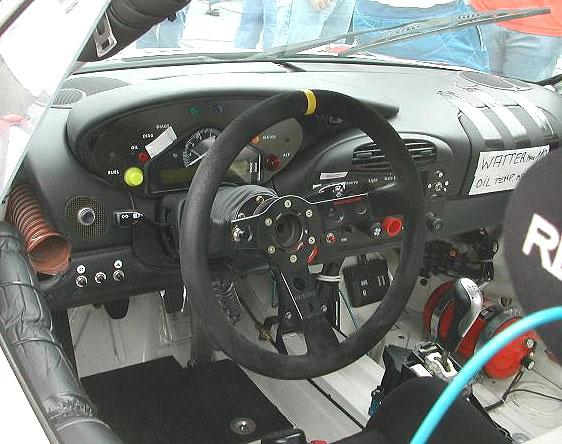

2000 GT3 R cockpit

STACK instruments
MOMO mod 07 steering wheel
note the 996 dash, with carbon panels that hold the gauges/lights

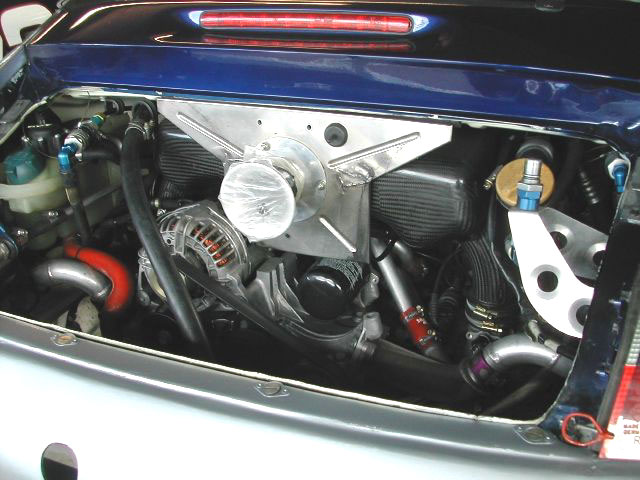

2000 GT3 R engine

single restrictor
BMC airfilters were used
port to right, was for adding oil during pit stops

(note the metal cooling pipes/wiggins clamps to replace the stock 996 hoses this was pioneered by Dick Barbour Racing)
