2002 GT3 RS specfications


Porsche 911 GT3 RS
single-seated, near-standard race vehicle

2002 Vehicle Description (according to 2002 ACO/FIA Regulations)
basis: 911 GT3


Six-Cylinder Boxer: 3598 cc - 76.4mm stroke, 99.99mm bore
horsepower: 435 @ 8250 rpm (with two 30.8mm restrictors)
torque: 395 Nm @ 7200 rpm
Max RPM: 8500
Cooling: Water Cooled
Intake System: Six Individual Throttle Valves
Fuel Injection: Sequential multi-point Bosch MS 3.1 system with ignition control
Lubrication: Dry Sump with Heat Exchanger and Mobil 1 oil Exhaust System: Open without Catalytic Converter

Power Train

Transmission: Six Speed Manual, type G96/61 with oil/water heat exchanger
Gear Shift: Cable Controlled
Flywheel: Single Mass with triple disc racing clutch Differential: Limited Slip - 40/60percent


Chassis: Revised, Weight-optimized 911 GT3 Chassis Composites: Carbon KevlarAerodynamically Optimized Front Nose and Tail Section, Front Fenders, Front and Rear Hood, Fender Flares, Doors, Rear Tail and Lid - Plastic Door, Side, and Rear Windows
Safety: Six Point Seat Belt/Harness, Welded in Roll Cage, Quick Lock Steering Wheel, Fire Extinguisher System Seating: Racing Bucket Seat, Driver Only, Bracket for passenger seat
Fuel System: 100 Liter FT3 Safety Fuel Cell with Quick Refill System
Jacking: Three-point on board air jacks system


Steering: Electronically Actuated Power Steering Suspension-Front: McPherson front axle with Ball Joints and corresponding changes of kinematics (to meet ACO/FIA regulations)
Suspension-Rear: Multi-Link Rear Axle with Ball Joints and corresponding changes of kinematics (to meet ACO/FIA regulations)
Springs: Double Coil Four Position Adjustable Coil Springs Shock Absorbers: Sachs Adjustable
Roll Bars: Five Position Adjustable Front, Lever Arm System Rear


BBS Three Piece Adjustable (10"x18" Front - 11"x18" Rear) with Center Lock Hubs


Delivered with Michelin rain tires (24/64 - 18 front and 27/68 - 18 rear)

Brake System

System: Twin Pedal, Twin Master Cylinder System with Balance Bar - no ABS
Discs: Internally Vented - 380 mm Front, 355 mm Rear, racing pads


Engine: Bosch MS 3.1 Engine Management Data
Motec display with integrated data recording
Lap Timing: Lap Trigger with Lap Recording in Display Battery: 12v 50 Ah Battery
Alternator: 110 amp

Vehicle Weight

Approximately 1,100 kg (2442 lbs) per Le Mans Regulations


Exterior colors (water based paint): Carrera White B9a

Production Figure - 48 cars

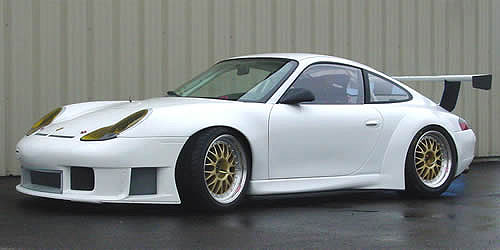

2002 GT3 RS

almost identical to the 2001 model with some fine detail changes.

(notice lightweight mirrors, wheel offset changes, "wide-track suspension", and the rear flare/rocker panels unique to the RS, cars were also delivered with yellow headlight lenses.Cars also were delivered with Michelin rains.)

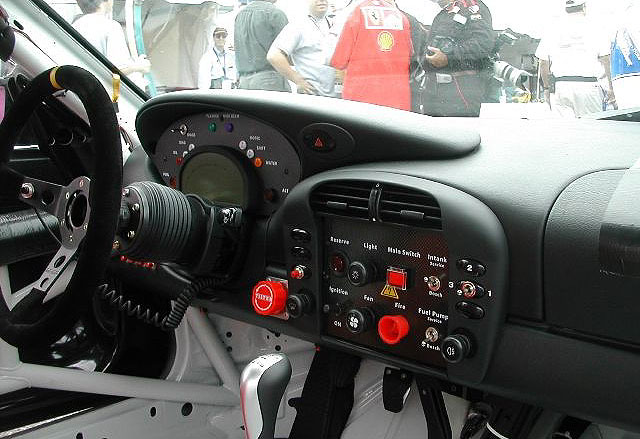

2002 GT3 RS cockpit

MoTeC dash
MOMO mod 07 steering wheel

(fairly the same since the beginning, a few basic changes/additions to warning lights/switches)

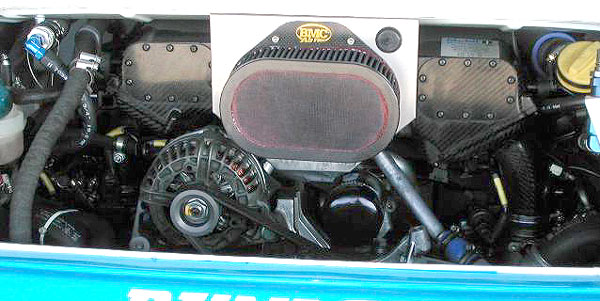

GT3 RS engine

biggest difference between the 2000 R model, and the RS in the engine bay was the twin restrictor intake, the carbon intake revisions, notice the access holes, and difference in manifold construction

(the quick-disconnect port on left side of engine was for bleeding the cooling system)
