2007 GT3 RSR specfications
Concept

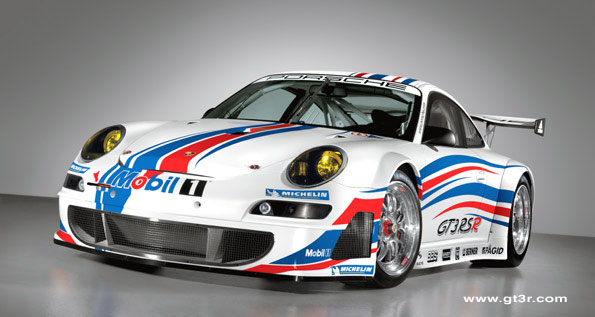

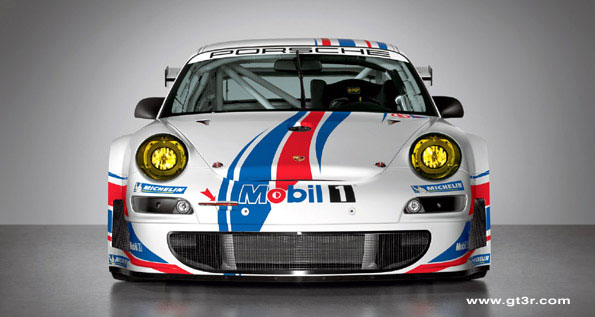

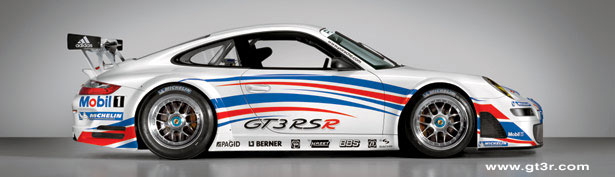

Porsche 911 GT3 RSR
single-seated GT race vehicle.
in accordance with the 2006 ACO LMGT2 Regulations and the 2006 FIA Article
257 (Technical Regulations for Series Grand Touring Cars).
basis: Model Year 2007 Porsche 911 GT3 RS (997; street legal version).
homologated from January 2007 onwards

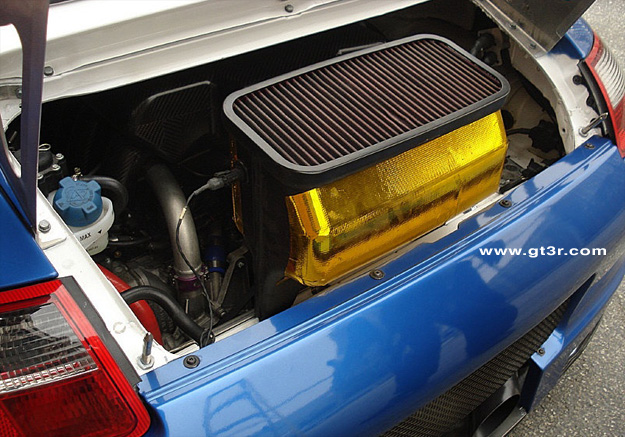

Engine
Six-cylinder aluminum boxer engine, water-cooled.
3,795 cc, stroke 76.4 mm, bore 102.7 mm.
max. power: 358 kW (485 bhp) at 8,400 rpm.
max. torque: 435 Nm at 7,250 rpm.
air restrictors 2 x 30.3 mm.
max. rpm: 9,000 rpm.
four-valve cylinder heads.
oil-water heat exchanger.
dry-sump lubrication system with engine mounted dry-sump tank made from carbon
fiber.
oil and cooling water refilling system.

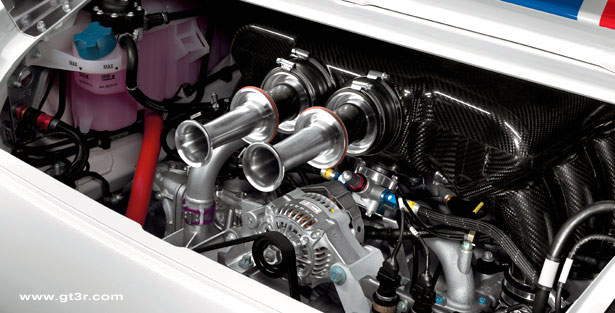

intake manifold made of carbon fiber with dual air restrictors and single
throttle per cylinder, dual restrictor.
electronic engine management system BOSCH MS 4.0.
required fuel quality: 98 octane ROZ, unleaded
race exhaust: multiple pipe manifold, open exhaust, no catalytic converter
Power Train
Six-speed sequential dog type manual transmission, straight cut gears re-designed
for optimized drive shaft angle.
"in-line" shift mechanism, sensor controlled traction interruption.
oil-water heat exchanger.
single-mass flywheel with triple-disc race clutch.
limited slip differential 40/60%.
rear-wheel drive.
Bodywork
weight optimized and widened 911
GT3 RS chassis (add-on parts made from carbon/kevlar fiber)
welded-in roll cage.
racing seat (driver side only) with fire retardant upholstery, weight optimized
six-point seat belt, prepared for using HANS Safety System (Head And Neck
Support System).
three-point air jack system.

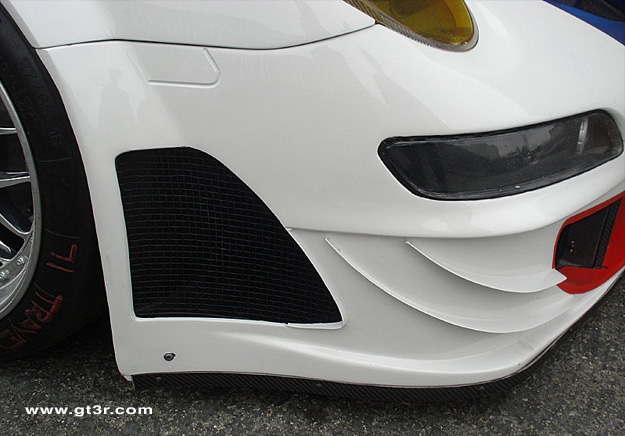

aerodynamically optimized front and rear part.
flat underbody made from carbon fiber.

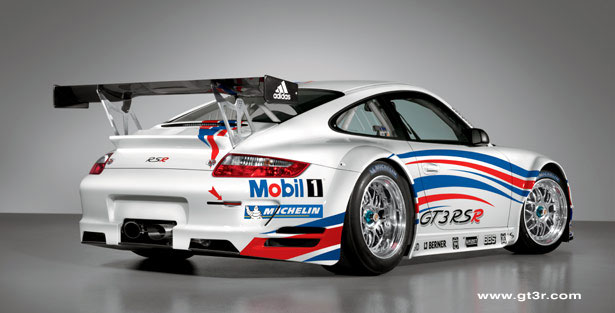

adjustable rear wing.
removable steering wheel (quick-connect coupling).
fire extinguishing system.

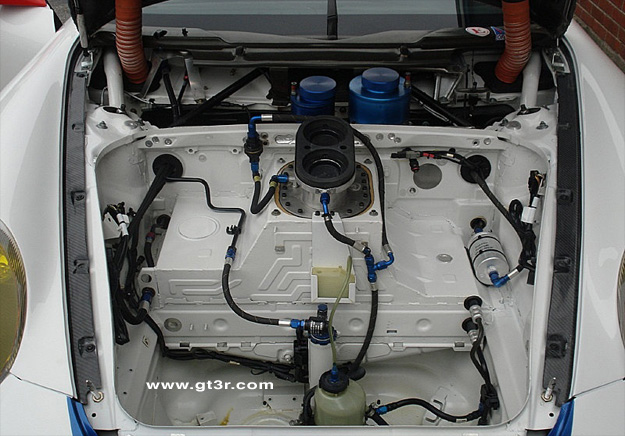

100 litre FT3 safety fuel tank with quick refuelling system.
Vehicle Weight
approx. 1,225 kg

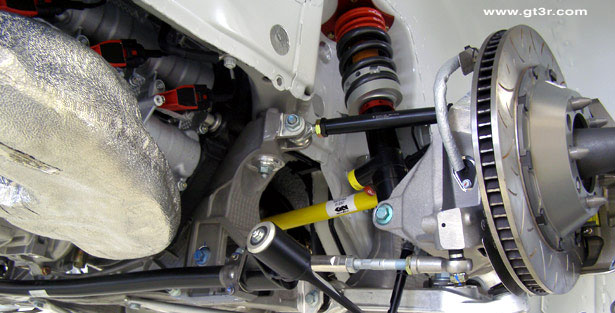

Suspension
McPherson front axle with unibal joints and corresponding
changes of kinematics
adjustable front roll bar, blade type
power steering

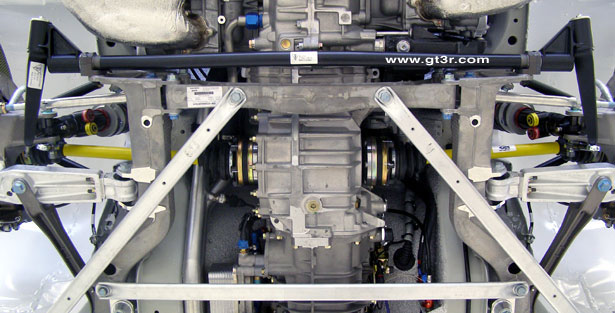

multilink rear suspension with unibal joints and corresponding changes of
kinematics
adjustable rear roll bar, blade type
double coil springs in front and rear adjustable in four different positions
front and rear struts with adjustable Sachs shock absorbers
suspension continuously adjustable (heights, camber, track)
Rims/Tires
Front axle: three-piece BBS light
aluminium rims 11J x 18 with central locking wheel nuts
Rain tires 27/65-18
Rear Axle: three-piece BBS light aluminium rims 13J x 18 with central locking
wheel nuts
Rain tires 31/71-18
Brake System
without ABS, dual master cylinders,
brake force balance adjustable by bias bar system

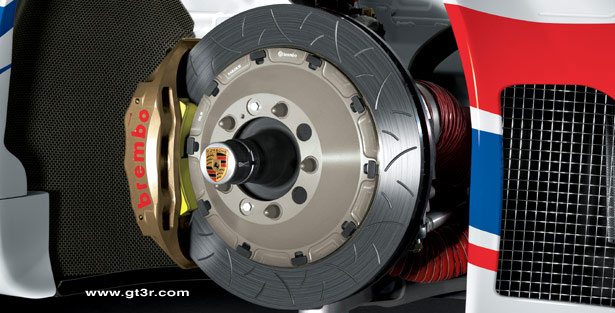

six-piston fixed brake callipers in the front
weight-optimized internally vented brake discs; 380 mm diameter
four-piston fixed brake callipers in the rear
weight-optimized internally vented brake discs; 355 mm diameter
Electrics
Bosch MS 4.0 engine management

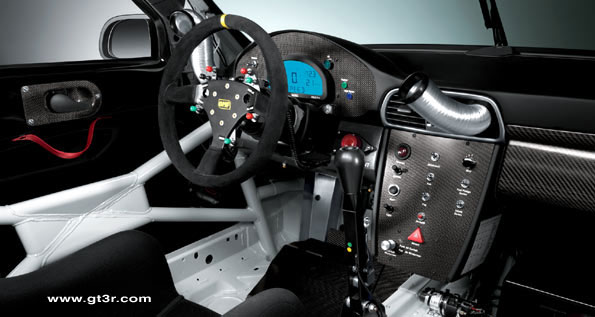

Motec display with integrated data recording
battery: 12 Volt, 50 Ah
additional ventilation for driver (fan)
110 Ah generator
wiring harness prepared to accept A.C.O. stack data logging system
Background
The Porsche 911 GT3 RSR (type 997) is in compliance with the 2006 Le Mans
GT2 regulations of the Automobile Club de l'Ouest (A. C. O.) as well as the
regulations of the international automobile assembly FIA for Series Grand
Touring Cars, thus enabling the participation in various racing series.
The new design adopts
the meanwhile typical face of the 997 series. Due to body work optimizations,
the Porsche 911 GT3 RSR (type 997) dispose of improved aerodynamics and a
10 percent increased stiffness. At the same time, the centre of gravity has
been lowered significantly. Wider rear fenders and a wider rear track for
rear wheels up to 14 inches enhance the performance capabilities of this new
racing car and make it competitive against rivals like Ferrari, Panoz and
Spyker. The 3,8 litre engine produces 485 hp at a maximum torque of 435 Nm.
Additionally, the new RSR convinces through re-designed, service- and driver-friendly electronics.
Performance and reliability remain the outstanding characteristics of the 911 GT3 RSR, which was built also and especially for the insertion in long-distance racing, e. g. at the famous Le Mans 24 Hours.
The vehicle can not be approved for road use. Each customer is solely responsible for observing the regulations relevant to himself and his car.
Notable Victories
Winner International GT Open Championship
1st place Le Mans 24 Hours (GT2 class)
1st place N¸rburgring 24 Hours (overall win)
1st place Spa 24 Hours (GT2 class)
1st place Petit Le Mans (GT2 class)
1st place Mil Milhas Sao Paulo (GT2 class)
